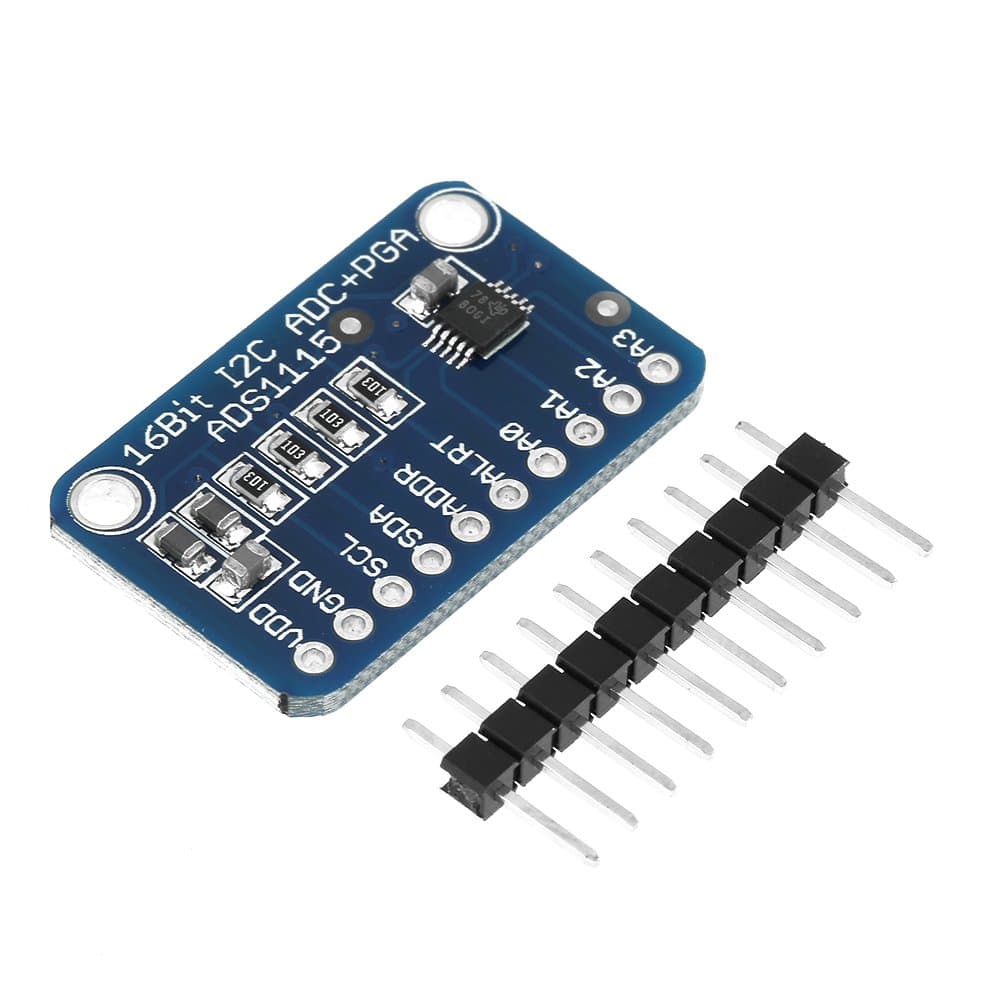

Features:For micro-controllers without an analog-to-digital converter or when you want a higher- ADC, provides 16-bit at 860 samples/second over I2C.The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice , it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential to the full range.We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of and its super easy to use. It is a great general purpose 16 bit converter.The chip's fairly small so it comes on a board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the data-sheet table 5) so you can have up to 4 connected on a single 2-wire I2C bus for 16 single ended inputs.Four single-ended or two differential inputs. Programmable comparator; internal low-drift voltage reference; internal oscillator; internal PGA. This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers.Specifications:Wide Supply Range: 2.0v to 5.5v;Low Current Consumption: Continuous Mode: Only 150uA Single-Shot Mode: Auto Shut-Down;Programmable Data Rate: 8sps to 860sps;I2C Interface: Pin-selectable addresses;Size: 2.8*1.8cm/1.1*0.7inWeight: 5g(approx.)Package Includes:1 x Module1 x Pin Header
