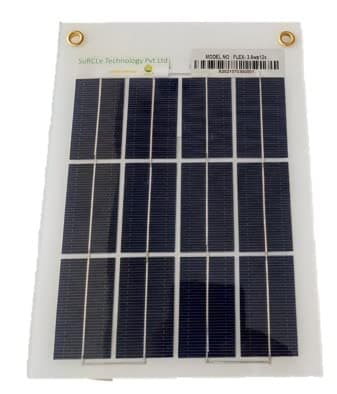

Lightweight Semi Flexible Solar Panel (3.6 W)

Description

This semi-flexible solar panel is the alternative solar module - lighter, thinner. Panel charges the on-board battery of your motorhome, boat or battery bank, vehicles automatically, silently and maintenance-free. Aluminum backing is much more flexible than normal solar modules. It can be easily mounted on curved surfaces such as boat decks or caravan alcoves. Potted junction box, for additional protection. High efficiency in moving conditions and also robust in harsh mechanical conditions. TFT, Teflon back-coated for strength.----- 2.75 mm thick, super lightweight.---- Adopting transparent PVDF material on the surface and high-quality TFT backplate, Salt Corrosion, and UV resistance withstands hail, storm and other harsh weather. Back panel Connection box ( insert diode ). Bend angle from 10-30 degrees. Portable, no glass and unbreakable. Application in mobile charging, battery bank charging, RV, Golf car, Electric car, Yacht, boat, marine, Tent or backpack, etc Model: SuRCLe-3.6watt--- TYPICAL ELECTRICAL CHARECTORISTICS Power at STC, (Pmax): 3.6 Watt Open Circuit Voltage, (Voc): 7.20Volts DC Short Circuit Current, (Isc): 0.60Amps Maximum Voltage at Pmax, (Vmpp): 6.00Volts DC----- Maximum Current at Pmax, (Impp): 0.58Amps Output port: Type A Female USB Standard Test Condition(STC): Irradiance 1000W/m², Module temp. at 25° C and AM 1.5G Spectrum. CELL CHARACTERISTICS---- Type of Solar Cell: POLY Crystalline, 31.35 x 52.25mm±0.5mm. Number of Cells: 12No.---- Arrangement of Cell Matrix: 3X4 MECHANICAL CHARACTERISTICS---- Module Size Dimension(LWH): 205x160x2.75mm Weight of Individual Module: ≈0.15kg
