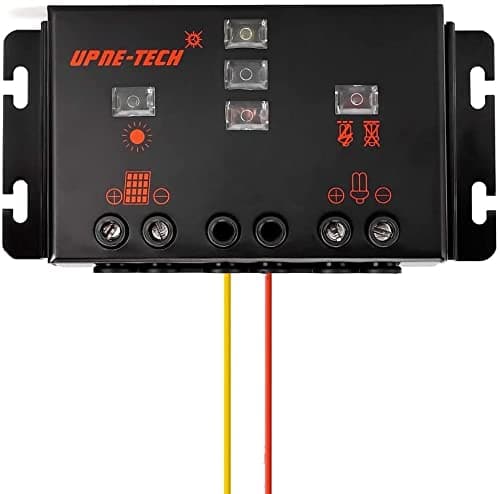

1.Linear Current boosters used in solar direct pumping applications ; 2. DC power converters which are designed to be an interface between a DC solar pump and solar panels.; 3.The controller can be used in both 12V and 24V systems . 4.They can achieve a 30-90% increase in water pumped compared to connecting the pump directly to the solar modules.5. Controller optimizes your solar water pumping system by translating the current and voltage available from your photovoltaic panels.6.Maximum of 380-watt of solar recommended for most applications.6.Increases daily water output up to 30-90 percent.7. Maximum Current Output 16 Amps. 8. Maximum Solar PV Array Input Voltage 55VDC Open Circuit.,9. Input Voltage: 11 - 50 DC volts PV Array, 10. Current: 3 - 16 DC Amps, 11.As soon as the controller is supplied with power from Panels, it starts a self test routine. At the beginning, all LEDs flash twice, then Green LED and Yellow LED are on.Then Controller starts to work with PWM output for 5 seconds, then keeps output without PWM for 10 seconds. After Self test, it continues to keep output until float switch on.if No connected to load within 15 seconds ,the controller will be protected with red LED on. 12.Normally, The controller will be enabled when PV voltage rises above 14V(12V systems)/28V(24V systems). And disabled when PV voltage downs to 11V/22V.13. Controller has Automatic over current protection, low current protection and low output voltage protection. When output current over 21A or short circuit, or output current lower than 3A, or output voltage lower than 11V/22V, protection works with Red LED on. After 15 minutes, the controller will retry to output, 14.Low Water Cut off :The controller features a low water cut-off that will automatically cut power to the pump when well water has been drawn down below the pump of inlet.
